Overpass Ponikve 1

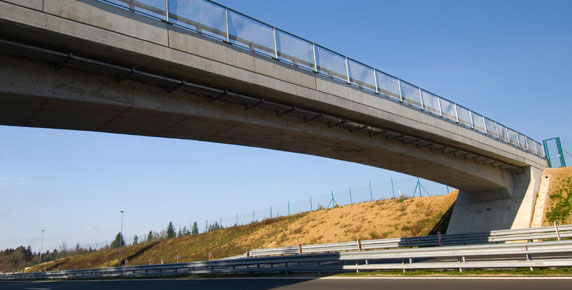

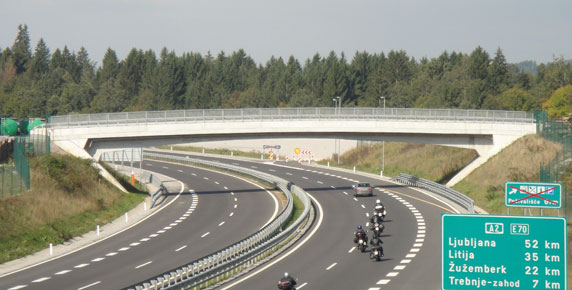

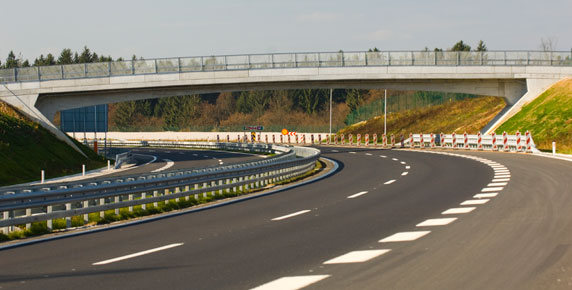

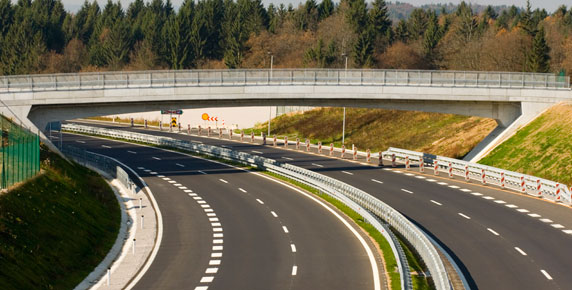

The overpass with a longer single span of 45 m with variable prestressed R.C. superstructure height is built in a partial cut nearby the Ponikve junction.

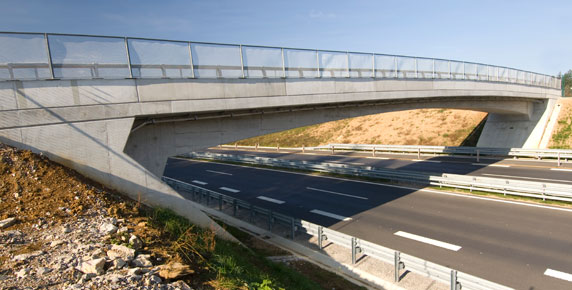

The end abutments are inclined which causes the decrease of the integral frame structure span to the length of 31 m. One abutment is founded on a shallow strip foundation, but the other one through bored piles.

The chosen execution of the overpass is visually appealing and enables a comfortable underpass.

TECHNICAL DATA

  • MW Section: Pluska - Ponikve
  • Structure: Overpass Ponikve 1

  • Total length: 48m
  • Span length: 45m
  • Width: 6m
  • Total area: 290m²

  • Build: 2010
  • Design: Main & Executive
  • Designer: PROMICO Ltd.
  • Contractor: Kraški zidar Plc
  • Investor: R. Slovenia, DARS Plc
