Overpass Ponikve 2

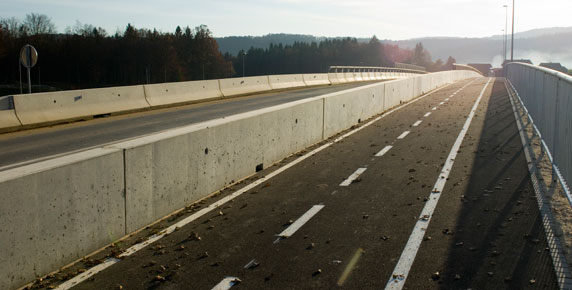

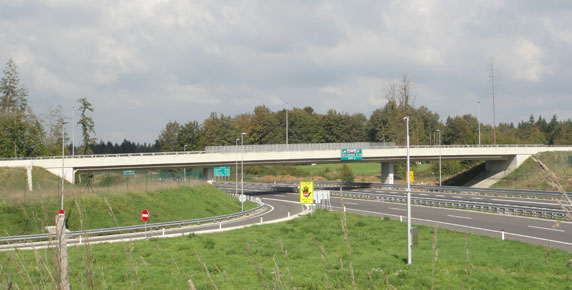

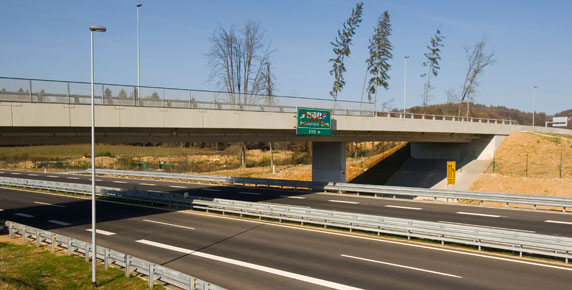

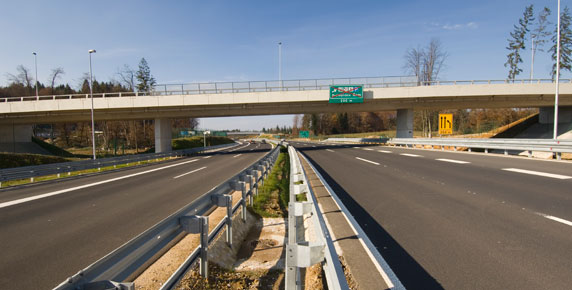

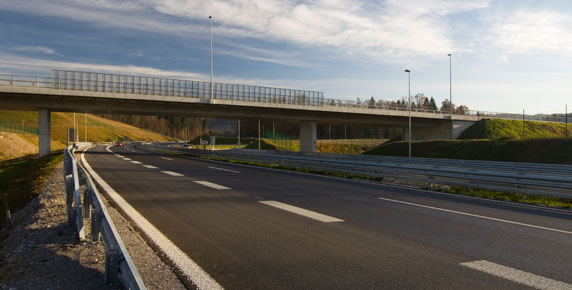

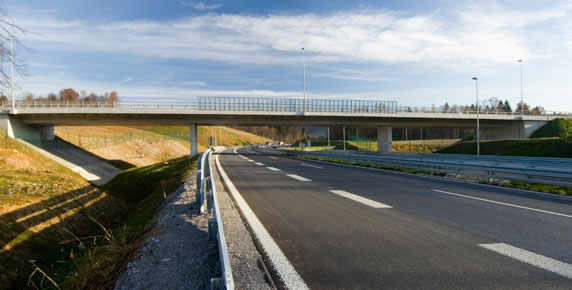

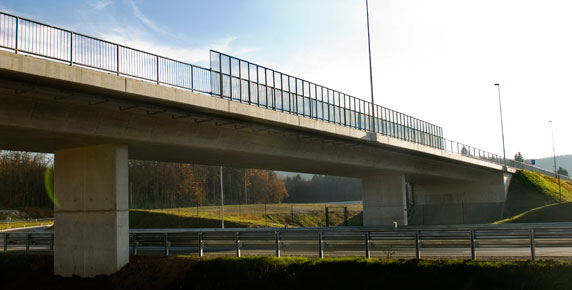

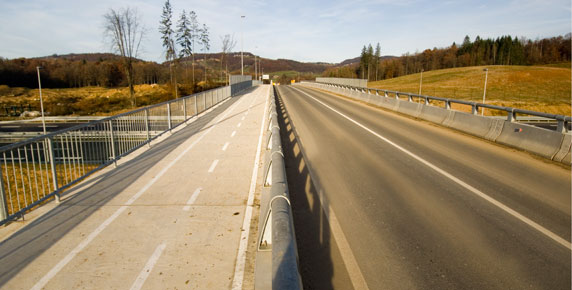

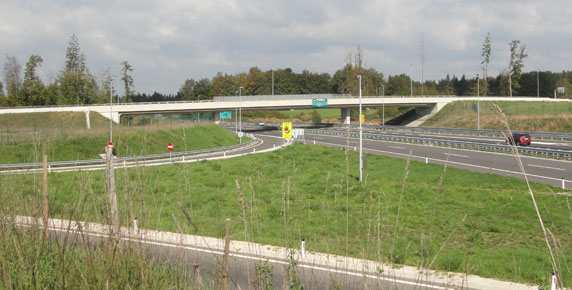

In the Ponikve junction, an up-to date integral monolithic frame structure of overpass with total length of 85 m was built. The middle supports have shallow strip foundations as well as end abutments which have sufficient elasticity enabling a considerable total overpass length. The prestressed R.C. superstructure has three spans with longer central span of 34m, which enables the omitting of awkward middle support in the central reserve area of the MW.


  • MW Section: Ponikve-Hrastje
  • Structure: Overpass Ponikve 2

  • Total length: 85m
  • Span length: 34m
  • Width: 12.6m
  • Total area: 1100m²

  • Build: 2010
  • Design: Main & Executive
  • Designer: PROMICO Ltd.
  • Contractor: Kraški zidar Plc
  • Investor: R. Slovenia, DARS Plc
